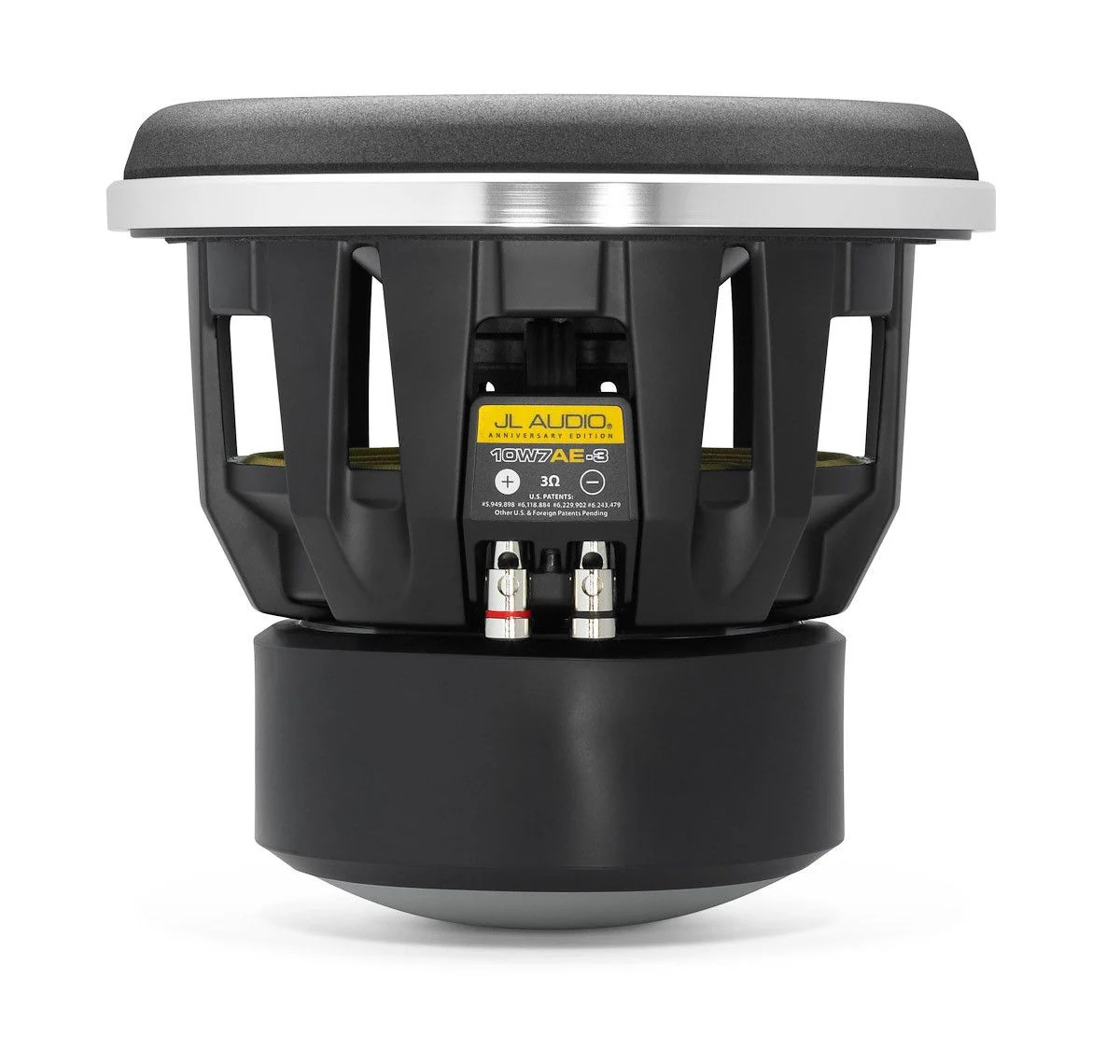

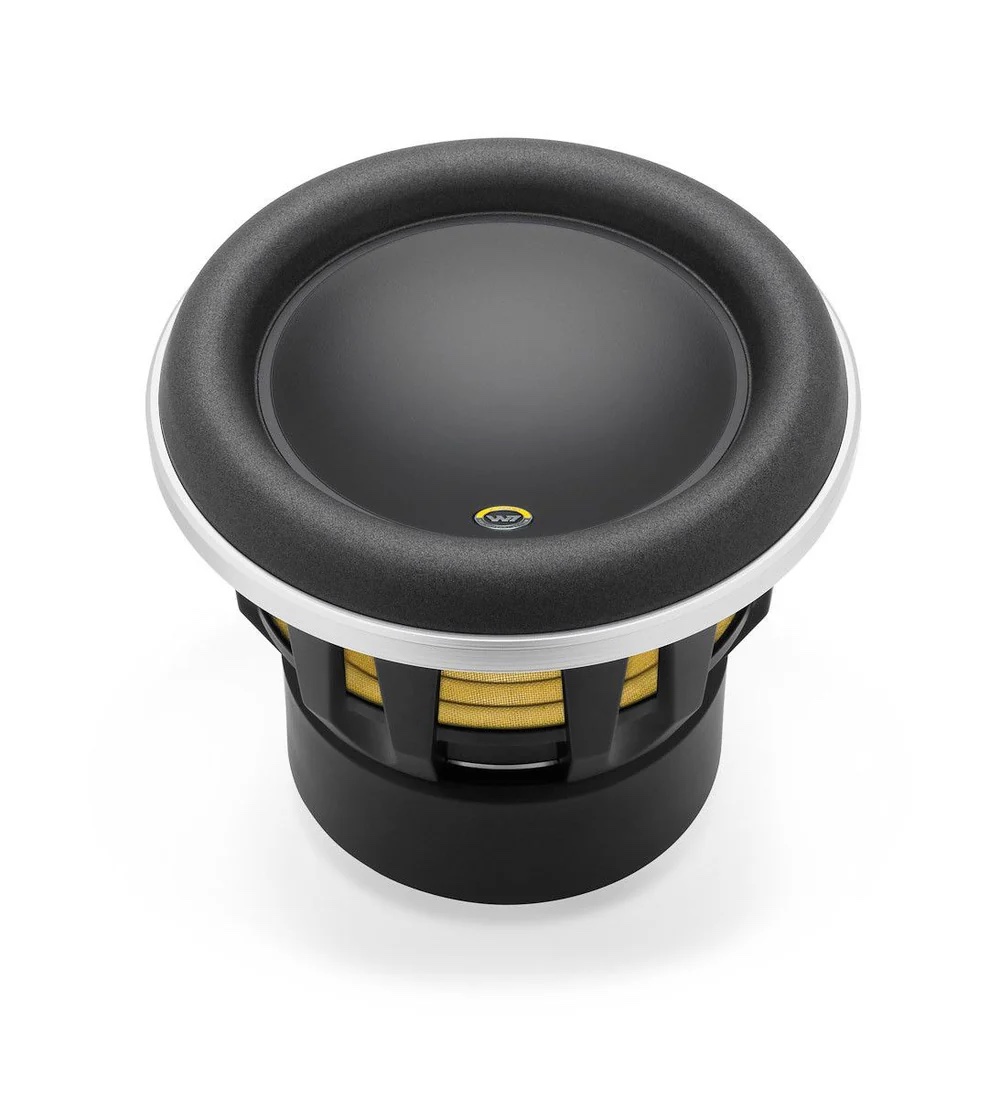

JL AUDIO 10W7AE-3 – 10-inch (250 mm) Subwoofer Driver, 3 Ω

Description

If you are seeking reference-grade sub-bass from a 10-inch driver, your search ends here. Total Car Audio in the UK called it like this when they reviewed the 10W7: “This gives an all round performance of such high quality on every level, that bettering it will be very hard to achieve.” Not only does the 10W7 deliver amazing excursion capability for its size, but it also maintains complete composure under power and is able to track complex bass material with uncanny accuracy and power.

The 10W7AE is best used with amplifier power in the 300W – 750W range and is optimized to operate in a 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.5 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the “Specifications” tab.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7’s, but they are distinguished by the following cosmetic differences:

• Satin-Black Powdercoated Baskets
• Bright Anodized Surround Clamp Ring
• Anniversary Edition Cone Badge
• Anniversary Edition Terminal Label

Specifications

Continuous Power Handling (RMS)	750 W
Recommended Amplifier Power (RMS)	300 – 750 W
Nominal Impedance (Znom)	3 Ω

Nominal Diameter	10.0 in / 250 mm
Overall Diameter (A)	10.5 in / 267 mm
Mounting Hole Diameter (B)	8.74 in / 222 mm
Bolt Hole Circle Diameter (C)	9.34 in / 237 mm
Motor Outer Diameter (D)	6.55 in / 166 mm
Mounting Depth (E)	8.0 in / 203 mm
Driver Displacement	0.09 cu ft / 2.5 L
Net Weight	30 lb / 13.6 kg
